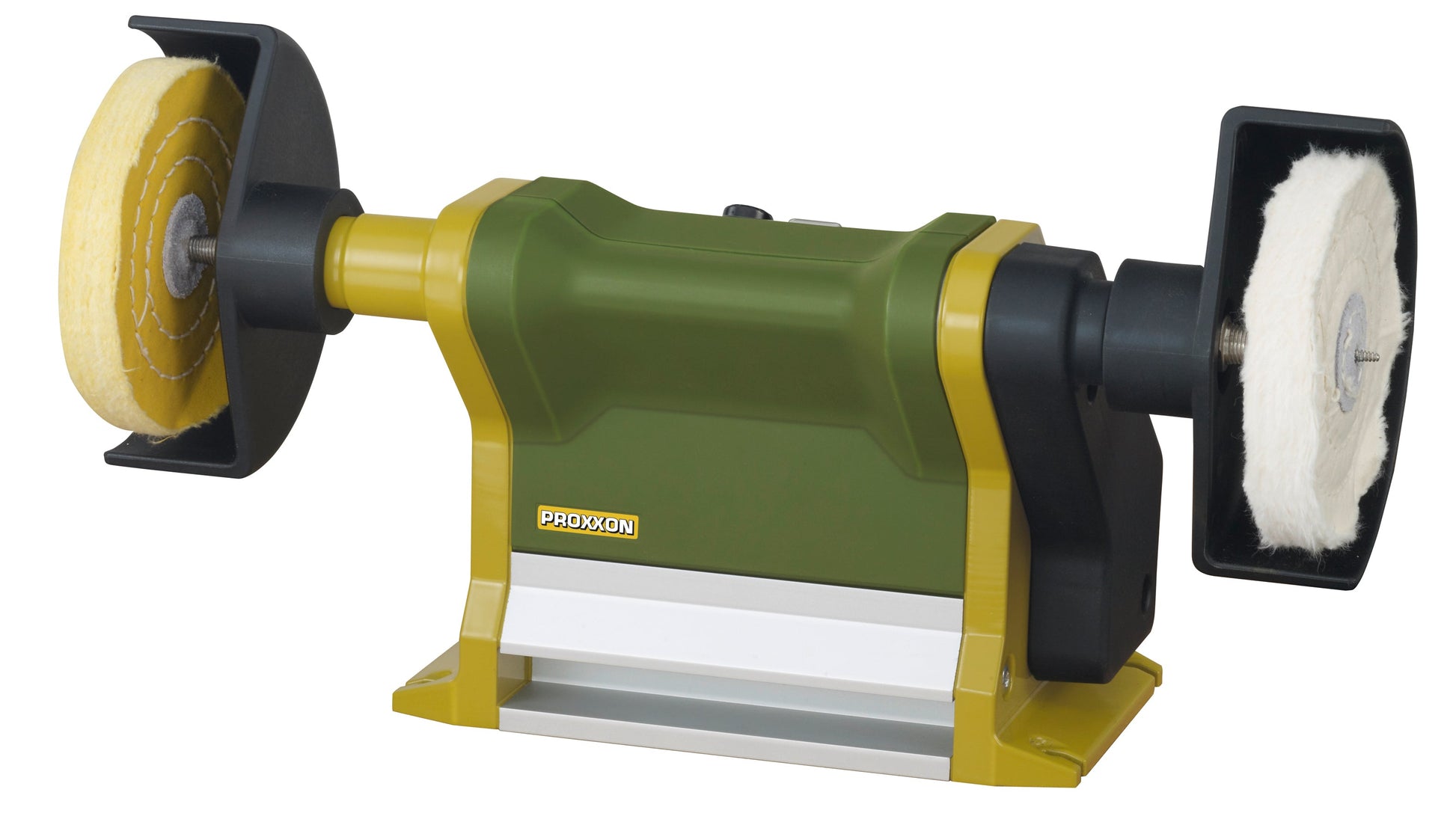

Polishing machine PM 100

For standard brushes and inserts up to 4" or 102mm. Load bearing side parts made of aluminium with milled bearing seats enable very quiet low-vibration operation

With long, ball bearing mounted main shaft (distance from disc to disc approx. 360mm) and adjustable protective guards to work cleanly with polishing pastes

Powerful drive through DC motor with speed control (full-wave electronics). For high starting torque and enormous traction even during strong contact pressure. Firm mounting with screws, but also with the attached screw clamp in horizontal or vertical position

Included with the original equipment: 1 each stiff and soft muslin polishing wheel (100 x 15mm) and 1x universal polishing bar (80g)

Technical data:
230V. 140W. 50/60Hz. Variable speed of 1,000 - 3,100rpm. For polishing discs up to a max. of 4" or Ø 102mm. Size L 320, W 220, H 250mm. Weight approx. 5kg. Insulated to class 1

Note:
Shaft drive via toothed belt: The motor no longer limits the working area. The slim housing around the main shaft even enables machining the surface of very long and variously shaped work pieces
